Famous Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of shantui medium-sized excavator se215 in China. Please feel free to buy cheap shantui medium-sized excavator se215 for sale here from our factory. Quality products and reasonable price are available.
SE215 Performance Specifications
| Item | Specification |
|---|---|
| Operating Weight | 22,200 kg |
| Rated Power | 129 kW / 2,000 rpm |
| Engine Model | WP7H |
| Emission Standard | China IV |
| Bucket Capacity | 0.45–1.2 m³ (1.1 m³ standard) |
| Swing Speed | 11 rpm |
| Bucket Digging Force | 137 / 148 kN |
| Arm Digging Force | 99 / 107 kN |
| Ground Pressure | 47.7 kPa |
| Travel Speed | 3.3 / 5.3 km/h |
| Traction Force | 212 kN |
| Gradeability | 70% (35°) |
| Overall Length | 9,600 mm |
| Overall Width | 2,980 mm |
| Overall Height | 3,100 mm |
| Counterweight Ground Clearance | 1,080 mm |
| Minimum Ground Clearance | 470 mm |
| Track Gauge | 2,380 mm |
| Track Width | 2,980 mm |
| Maximum Digging Height | 10,100 mm |
| Maximum Dumping Height | 7,190 mm |
| Maximum Digging Depth | 6,490 mm |
| Maximum Digging Radius | 9,865 mm |

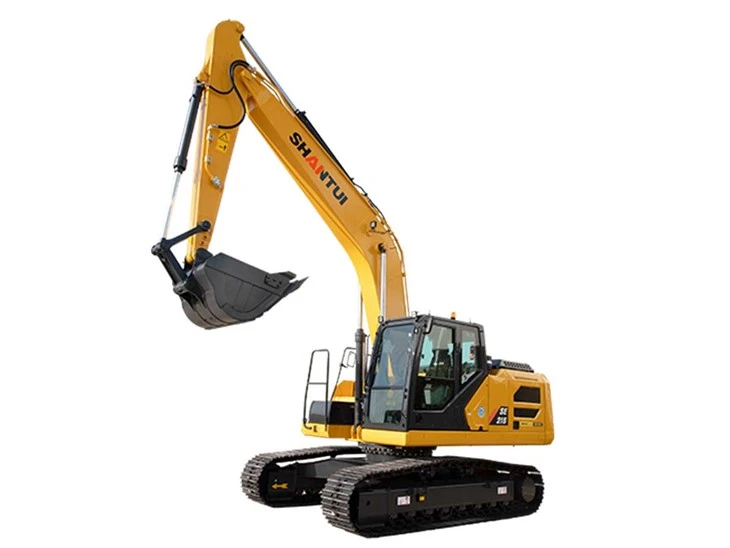

SE215 Hydraulic Excavator
The SE215 is a 22.2-ton hydraulic excavator designed for road construction, infrastructure work, agriculture and water conservancy, bridge projects, urban construction, airport work and general earthmoving applications.
Powered by a dedicated Weichai excavator engine, the SE215 delivers strong low-speed torque and reliable power for demanding working conditions. Its positive flow hydraulic system is optimized with the engine and main control valve to improve coordination between power and hydraulic output, helping the machine work more efficiently while reducing overall fuel consumption by more than 5%.
With a reinforced structure, wear-resistant bucket, intelligent touchscreen controls and a more comfortable operator cab, the SE215 is built for customers who need a reliable excavator for continuous digging, loading and site preparation work.
Detailed Product Introduction
Strong Power with Efficient Fuel Use
The SE215 uses a dedicated Weichai WP7H excavator engine with a rated power of 129 kW at 2,000 rpm. The engine is designed to provide strong low-speed torque and sufficient power reserve for excavation and heavy-duty working conditions.
The engine and hydraulic system are matched and optimized to improve power transmission and working efficiency. This helps the excavator maintain stable performance during digging, loading and other repeated operations while keeping fuel consumption under control.
The SE215 uses a DOC + DPF + EGR emission technology route and does not require DEF/urea addition, making the emission system easier to manage during daily operation.
Key Benefits
- Dedicated Weichai excavator engine
- Strong low-speed torque
- 129 kW rated power
- Positive flow hydraulic system
- Optimized engine and main valve control
- Overall fuel consumption reduced by more than 5%
- No DEF/urea addition required
Positive Flow Hydraulic System for Better Control
The SE215 is equipped with an electronically controlled positive flow hydraulic system. The main control valve has been optimized together with the engine control strategy to improve the coordination of the hydraulic and power systems.
This gives the operator smoother control and helps the machine respond consistently during digging, boom and arm movements, loading and other combined operations.
The system is designed to make better use of available engine power, helping improve working efficiency while reducing unnecessary energy loss.
Hydraulic Performance
- Bucket digging force: 137 / 148 kN
- Arm digging force: 99 / 107 kN
- Maximum bucket capacity: 1.2 m³
- Standard bucket capacity: 1.1 m³
- Maximum digging depth: 6,490 mm
- Maximum digging radius: 9,865 mm
Built for Demanding Conditions
The SE215 features an optimized structural design and high-strength components to withstand rigorous operating environments. Its primary structure is robust and durable, incorporating wear-resistant materials in critical working areas.
The new bucket is constructed from high-strength, wear-resistant materials, effectively extending service life when handling soil, crushed stone, and other highly abrasive materials.
With a ground pressure of 47.7 kPa and a maximum gradeability of 70% (35°), the machine is specifically engineered to tackle a wide range of complex operating environments.
Designed for Durability
- Reinforced structural components
- High-strength, wear-resistant materials
- Durable work equipment
- Wear-resistant bucket
- Stable crawler undercarriage
- Maximum gradeability of 70% (35°)
Comfortable and Intelligent Operator Cab
The SE215 is designed to make long working hours easier for the operator.
A 10.1-inch intelligent touchscreen provides access to machine functions and operating information. Four working modes allow the operator to select the appropriate operating mode according to different working requirements.
The machine also features one-button start and intelligent control functions, making daily operation more convenient.
The new cab uses an integrated stamped structure with improved sealing performance. According to the supplied product information, cab sealing has been improved by 30% and noise has been reduced by 2 dB, creating a quieter and more comfortable working environment.
Operator-Focused Features
- 10.1-inch intelligent touchscreen
- Four working modes
- One-button start
- Intelligent interaction and control
- Improved cab sealing
- Reduced cab noise
- Comfortable working environment
Easy Maintenance for Daily Operation
Maintenance accessibility is an important part of excavator ownership. The SE215 uses a centralized filter arrangement to make routine maintenance more convenient.
The air filter, engine oil filter and high-precision fuel filter are arranged for easier access, helping operators and maintenance teams complete regular inspection and servicing work more efficiently.
This practical maintenance design can help reduce unnecessary downtime during daily operation.
Applications
The SE215 is suitable for a wide range of medium-to-heavy construction and earthmoving applications.
Road Construction
Suitable for excavation, earthmoving, site preparation and other road construction work.

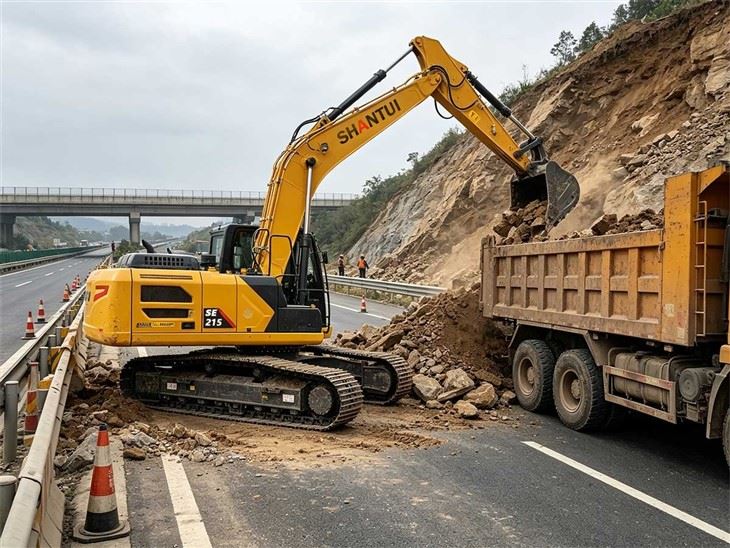

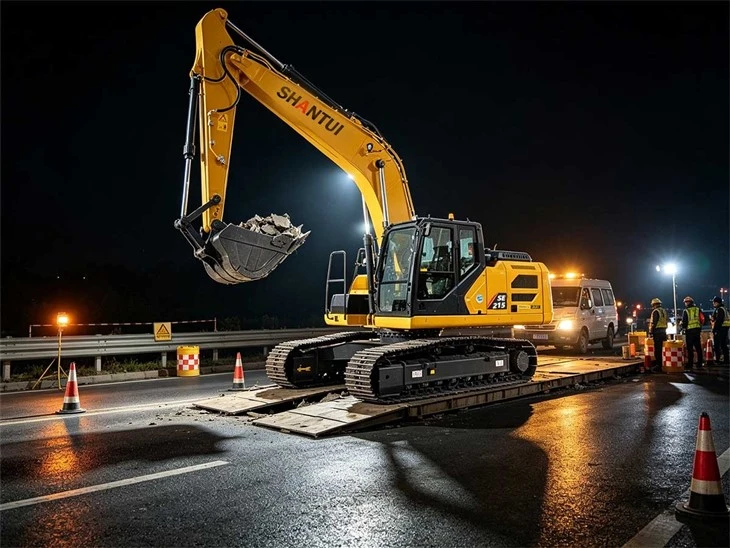

Road Maintenance
Its digging and loading capabilities make it suitable for road repair, maintenance and related earthmoving operations.

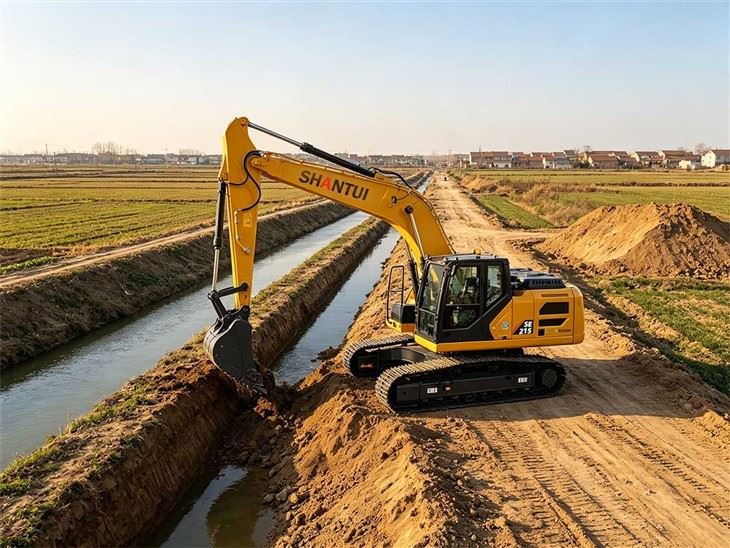

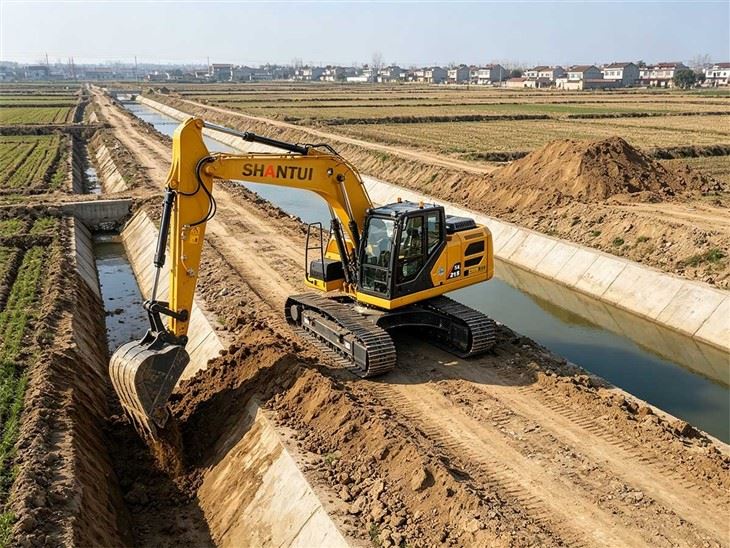

Agriculture and Water Conservancy
The SE215 can be used for earthmoving and excavation work in agricultural and water conservancy projects.
Bridge Construction
The machine provides the digging force and working range required for many bridge and infrastructure construction tasks.
Urban Construction
Its 22.2-ton operating weight and strong hydraulic performance make it suitable for general urban construction and site preparation.
Airport Projects
The SE215 can be used for excavation, earthmoving and site preparation in airport-related construction projects.
Why Consider the SE215?
The SE215 combines strong digging performance with practical operating efficiency. Its dedicated engine, positive flow hydraulic system and optimized control system are designed to work together rather than treating engine power and hydraulic performance separately.
For contractors and equipment buyers looking for a 22-ton-class excavator, the machine provides a balance of digging force, working range, fuel efficiency, operator comfort and maintenance convenience.
Key advantages include:
Strong power: 129 kW Weichai WP7H engine with strong low-speed torque.
Efficient operation: optimized engine and hydraulic system with more than 5% lower overall fuel consumption according to the supplied product information.
Strong digging performance: up to 148 kN bucket digging force and 107 kN arm digging force.
Durable construction: reinforced structural components and wear-resistant bucket materials.
Easy operation: 10.1-inch touchscreen, four working modes and one-button start.
Comfortable cab: improved sealing and reduced operating noise.
Convenient maintenance: centralized filter arrangement for easier routine servicing.
Wide application range: suitable for roads, bridges, urban construction, agriculture, water conservancy and airport projects.
