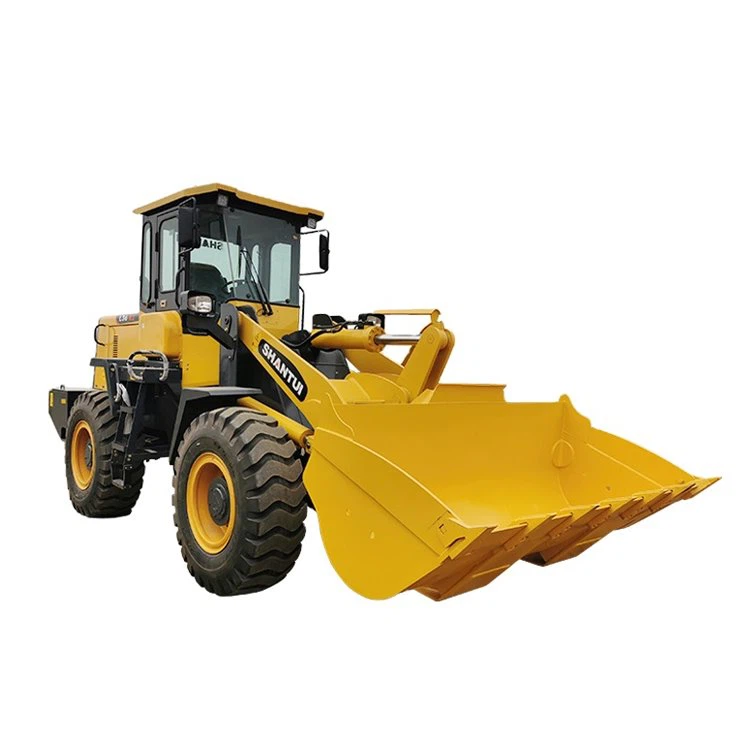

Famous Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of wheel loader 3 ton in China. Please feel free to buy cheap wheel loader 3 ton for sale here from our factory. Quality products and reasonable price are available.
Technical Features
Wheel loader 3 Ton Transmission system
Mature transmission system, supporting within the group, stable and reliable quality.
The L36-B3 has an internal customized exclusive speed-up gearbox, the first gear speed is increased by 10%, and the operation efficiency is significantly improved.
Heavy-duty independent intermediate bearing seat, front and rear double bearing design, smooth transmission, reliable and durable, the service life is more than double that of ordinary bearing seat.
Wheel loader 3 Ton Hydraulic system
The new optimized design of the hydraulic system, adding the working hydraulic oil radiator, has a wider application range.
Increase the hydraulic oil independent radiator and its bypass valve to stabilize the heat dissipation flow and prevent the oil from blowing out during cold car start in winter.
Single-pump shunt hydraulic system, high-pressure hose with 24° cone double seal and SAE flange face seal to prevent leakage. The bore of the lift cylinder is 125mm, and the boom is lifted powerfully.
L36-B3 adds several special pipe clamps to avoid the wear of the rubber hose due to relative movement. The flow rate of the hydraulic oil return filter is increased by 20%, the back pressure of the oil return is reduced, and the oil return is smoother.
Wheel loader 3 Ton Electrical System
The electrical components are newly upgraded, the design of the instrument panel is refreshing, and it is simple and practical.
The steering column is newly designed, the internal connection increases the strength, the appearance is smaller and more practical, and the operating space for the legs is increased.
The instrument panel has a clean design, and the oil level, electrical, pressure, temperature, alarm, signal indication and other configurations are complete.
Each electrical equipment and sensor of L36-B3 are grounded separately to reduce electromagnetic interference, improve instrument display accuracy and greatly improve reliability.
The electrical circuit is re-arranged, and is no longer fixed integrally with the hydraulic pipeline, but is fixed and bundled separately to avoid loosening and heating.
Wheel loader 3 Ton Structure
Structural components inherit the advantages of the previous generation model, adjust the load distribution of the front and rear axles, and travel lightly, reducing the working fuel consumption and improving the economy.
The rated load remains unchanged, the load distribution between the front and rear axles is optimized, and the work is more stable.
The position of the working hinge point is the same as that of the previous generation product, and the interchangeability is good. The auxiliary equipment of the old and new models is seamlessly connected, and the expansion space is large.
Adjust the material of the bucket teeth to have better wear resistance; the connection size is consistent with that of most manufacturers in the industry, and the replacement of accessories is convenient and easy to purchase.
Wheel loader 3 Ton driving environment
The whole machine has a new appearance, the interior is upgraded, and the driving and handling comfort is improved.
Brand new design, adding a number of practical configurations, LED front and rear headlights, watering cans, reading lights, defrost ports, etc. The new seat, with additional headrest, is comfortable and practical.
The direction of the working control flexible shaft is changed from 180° to 90°, which reduces the operating force and reduces the probability of valve sticking.
L36-C3 SG | L36-C3 CH | |
Performance parameters | ||
work quality(kg) | 10000 | 10000 |
Max. Unloading height(mm) | 2875(standard arm)3057(Extended arm)3200(King Kong Long Arm) | 3210(Extended arm)3420(King Kong Long Arm) |
Unloading distance(mm) | 1230(standard arm)1200(Extended arm)1270(King Kong Long Arm) | 1395(Extended arm)1510(King Kong Long Arm) |
Max. Rising Power(kn) | 105±5 | 105±5 |
Time used for lifting, loading and unloading, landing(s) | ≤10.6 | ≤10.6 |
Engine | ||
Engine model | WP6 | WP6 |
Rated power/rated speed（KW/rpm） | 92/2200 | 92/2200 |
Dimension | ||
Overall dimensions(mm) | 7240*2442*3235（Extended arm） | 7446*2442*3235（King Kong Long Arm） |
Forward speed(km/h) | F1:0-7.7,F2:0-13.9,F3:0-23,F4 | F1:0-7.7,F2:0-13.9,F3:0-23,F4 |
Backward speed(km/h) | R1:0-9.6,R2:0-29 | R1:0-9,R2:0-29 |
Undercarriage | ||
Wheelbase(mm) | 2700 | 2700 |
Fuel tank capacity | ||
Fuel tank(L) | 150 | 150 |
Working equipment | ||
Rated bucket capacity(m³) | 1.7 | 2.2 |
Rated load capacity(t) | 3 | 3 |
